ISUZU ELF 10CBM Compactor for Housing Estates
Engineered for gated residential estates, high-density apartment communities, and suburban housing property managers, the ISUZU ELF 10CBM Compactor Garbage Truck combines quiet low-vibration neighborhood operation with high-density refuse collection. Built on the proven ISUZU ELF 4x2 light-medium commercial platform (approx. 9,500–11,500 kg GVW) powered by the fuel-efficient 130–150 HP 4HK1/4JJ1 turbocharged common-rail diesel engine, this carrier features a 10m³ seamless curved compactor body formed from 4.5mm high-tensile Q345/NM450 wear-resistant steel plate. Its bi-directional hydraulic packing blade generates 16 MPa compaction force, delivering a smooth 1:2.5 compression ratio with a rapid 22-second cycle time to compress up to 5–6 metric tons of household organic and solid refuse per run without causing neighborhood noise disturbances.
Technical Specifications
- Brand Name
- ISUZU
- Overall Dimensions (mm)
- 7120*2300*2750
- curb weight(Kg)
- 6830
- Loading capacity(Kg)
- 6945
- Box Volume (m3)
- 12
- Box Body Material Quality
- Q345 steel
- Engine Power（kw）
- 139
- Fuel type
- Diesel fuel
- Front Axle/Rear Axle (t)
- 4/7
- Gearbox Model
- Isuzu MLD-6Q
- Number of Axles
- 4
- Wheelbase (mm)
- 3815
Standard Components Details
Rear Loader Option

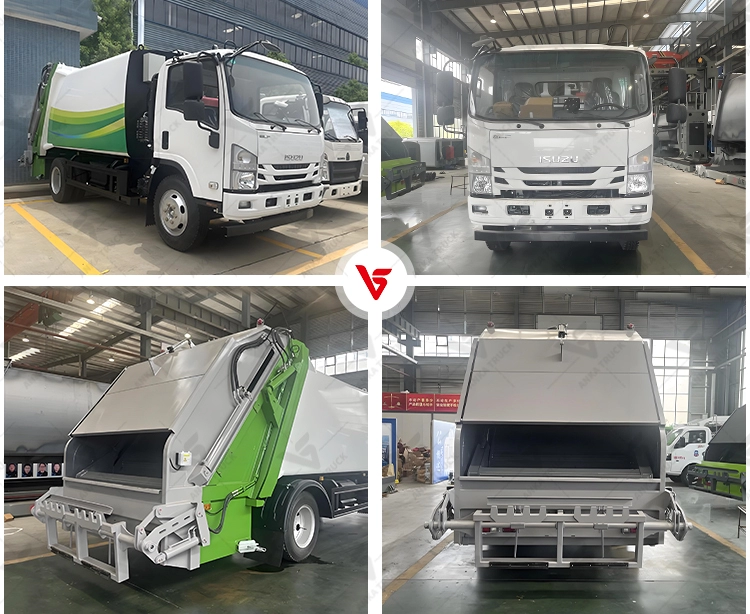

Factory Display
To guarantee clean, odor-free collection within residential zones, the vehicle is equipped with a smooth rear hydraulic bin lifter accommodating standard 120L, 240L, and 660L plastic waste containers with pneumatic anti-drop latching. Dual underfloor and hopper leachate collection reservoirs with thick silicone sealing gaskets and quick-release drain valves ensure zero wastewater dripping along community roads. Operations are controlled via an in-cab CAN-bus electronic panel and bilateral rear waterproof mechanical levers with multi-point emergency stops. We provide comprehensive fleet options, including high-pressure deodorizing sprayers, rear skip hoists, custom residential fleet graphics, and reversing camera systems.
Packing and Delivery
*Packing--Waxed or nude, and covered with tarpaulin.
*shlpping--small type can be shipped in 20"GP40"GPor 40"H0, big type can be shipped in bulk ship or RoROshipping,or according to your requirement.
