ISUZU ELF 12CBM Compactor for Industrial Parks
-
When You'll Get It:Jan 13 - Jan 17
-
Shipping & Support: In-stock items ship in 24 hours; custom orders ship per contract.
ISUZU ELF 12CBM Compactor for Industrial Parks
Engineered for manufacturing industrial parks, warehouse logistics hubs, and commercial factory complexes, the ISUZU ELF 12CBM Compactor Garbage Truck withstands the harsh structural demands of continuous heavy packaging and industrial solid waste collection. Built on the heavy-duty ISUZU ELF 700P/FTR commercial chassis (approx. 12,000–14,000 kg GVW) powered by the robust 150–190 HP 4HK1 turbocharged common-rail diesel engine, this workhorse is equipped with a 12m³ reinforced curved compaction body fabricated from 5mm wear-resistant steel plate. Its heavy multi-stage hydraulic packer generates up to 18 MPa working pressure, delivering an aggressive 1:2.8 compression ratio that crushes bulky cardboard, packaging foam, and mixed cafeteria waste into dense 7–8 ton payloads per run.
Technical Specifications
- Brand Name
- ISUZU
- Overall Dimensions (mm)
- 7020×2300×2700
- Kerb Weight (Kg)
- 6830
- Box Body Material Quality
- Q345 Manganese Steel Plate
- Box Volume (m3)
- 8
- Compression Density (t/m ³）
- 0.6-0.8
- Engine Power（kw）
- 117
- Fuel type
- Diesel
- Front Axle/Rear Axle (t)
- 2.5/5.5
- Gearbox Model
- 6-Speed Manual
- Number of Axles
- 2
- Wheelbase (mm)
- 3815
Standard Components Details
Rear Loader Option

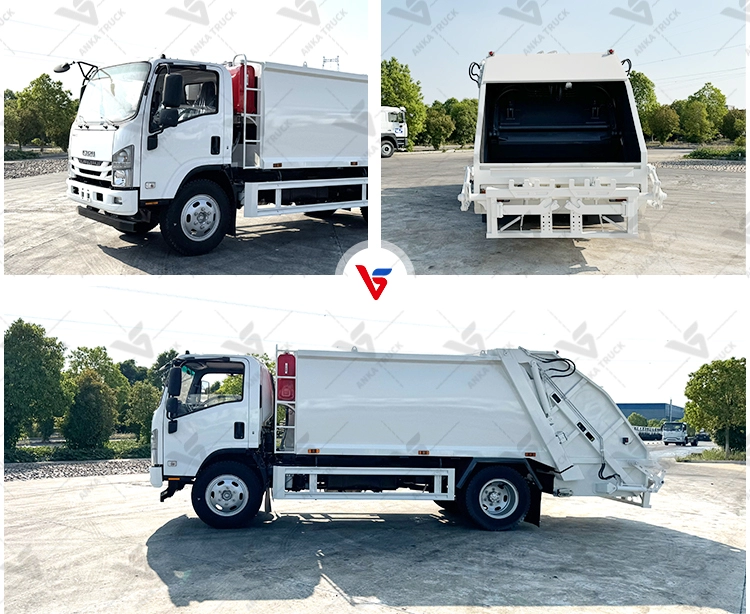

Factory Display
To handle heavy industrial waste bins efficiently, the compactor features a reinforced rear comb-and-trunnion cart tipper capable of hoisting 120L, 240L, 660L, and 1,100L heavy-duty containers with hydraulic dampening to prevent container damage. Dual heavy-duty sub-floor leachate drainage tanks with synthetic rubber seals and high-flow discharge valves securely contain industrial liquid runoff. Controlled via an in-cab CAN-bus console, bilateral rear lever stations, and multi-point emergency stops, the vehicle is fully customizable with high-pressure body washdown reels, rear skip bucket hoists, custom corporate livery painting, and automated weighing scales.
Packing and Delivery
*Packing--Waxed or nude, and covered with tarpaulin.
*shlpping--small type can be shipped in 20"GP40"GPor 40"H0, big type can be shipped in bulk ship or RoROshipping,or according to your requirement.
