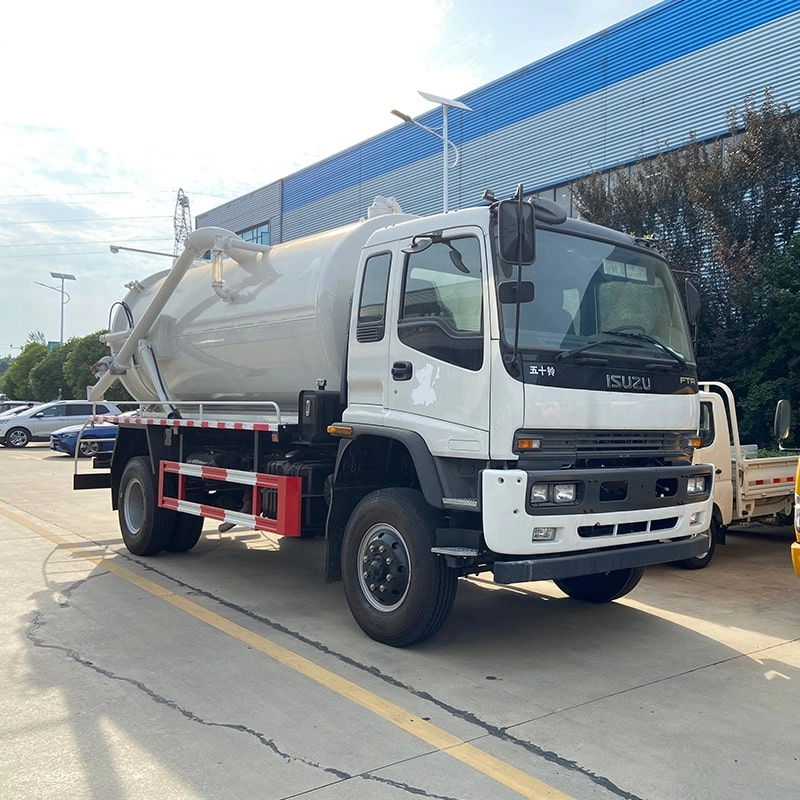

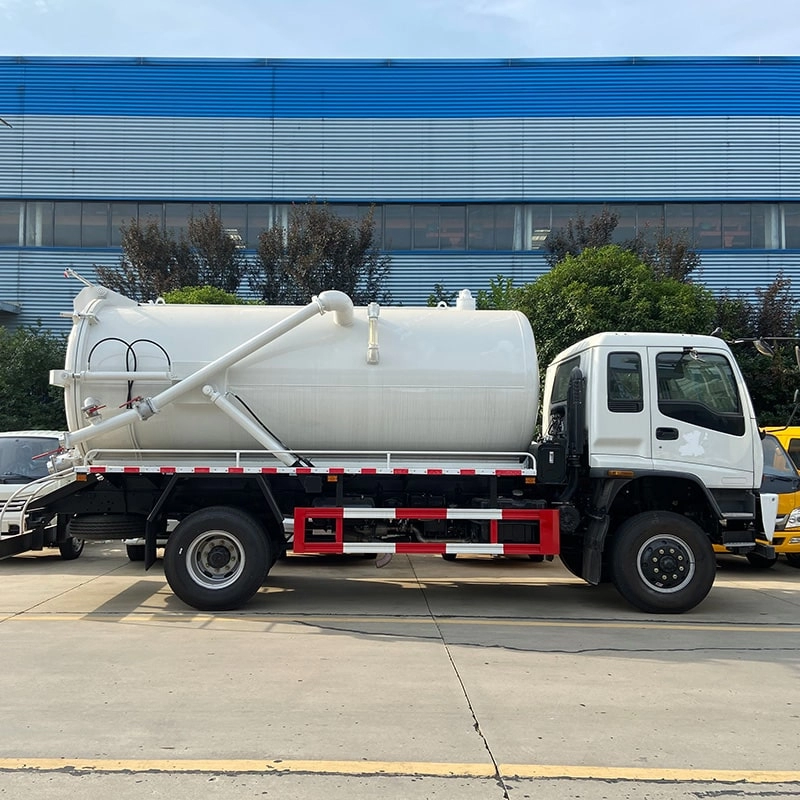

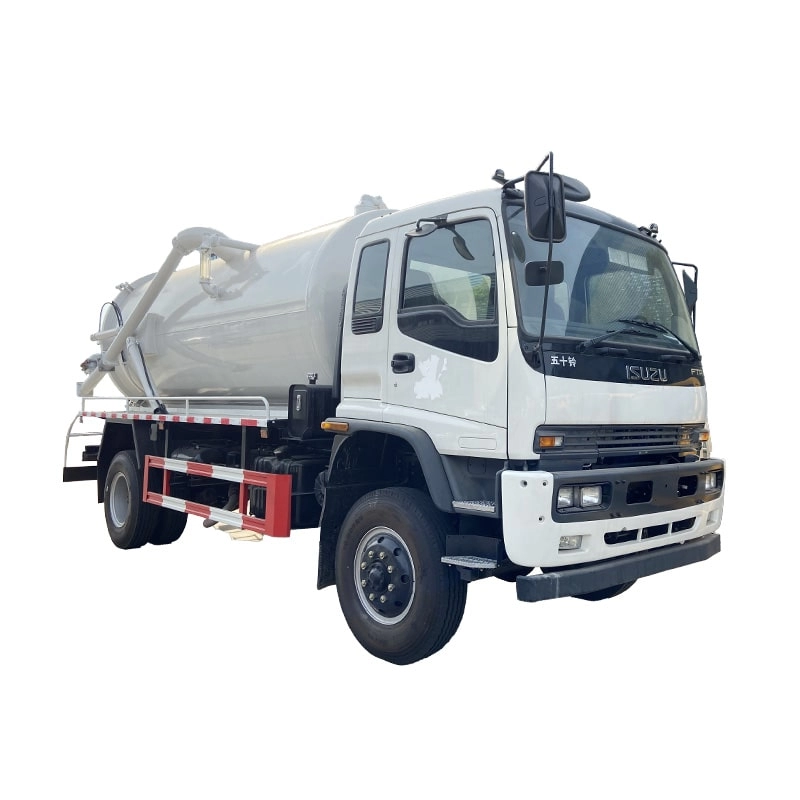

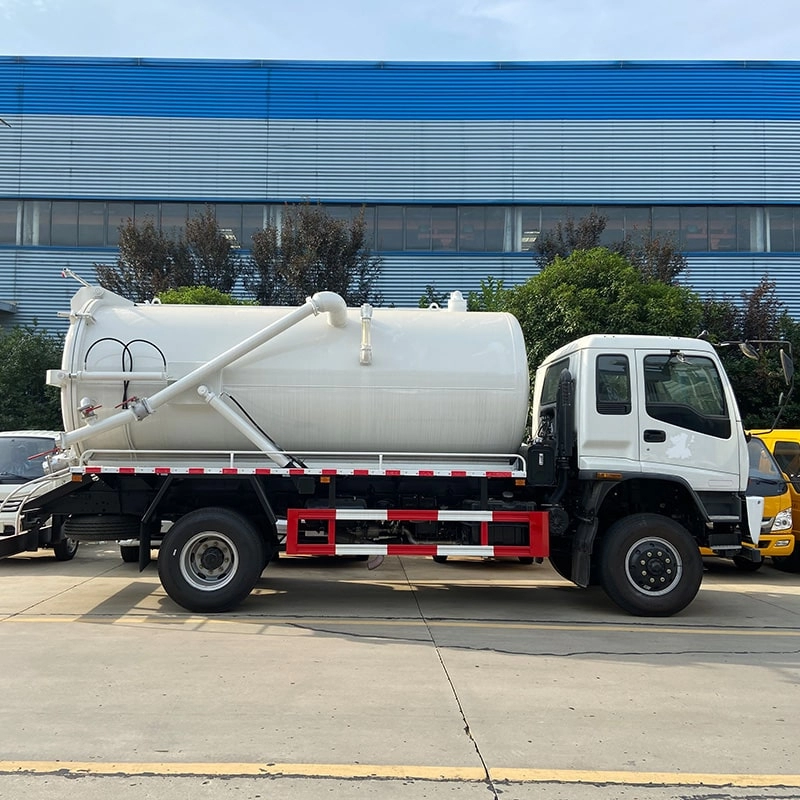

ISUZU 12000L Sludge Vacuum Truck for Treatment
-
When You'll Get It:Jan 13 - Jan 17
-
Shipping & Support: In-stock items ship in 24 hours; custom orders ship per contract.
ISUZU 12000L Sludge Vacuum Truck for Treatment

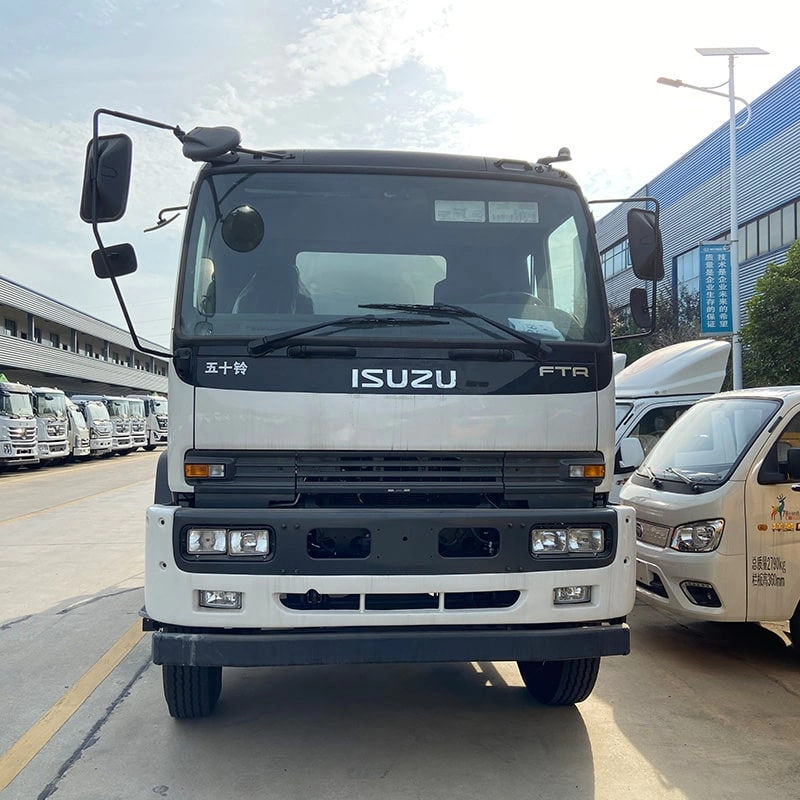

Built for high-volume wastewater transport, industrial effluent transfer, and sewage treatment plant disposal, the ISUZU 12000L Sludge Vacuum Truck provides heavy-duty suction and fast offloading of dense slurries. Mounted on the reinforced ISUZU FTR/FVR 4x2 commercial chassis powered by a robust 6HK1 turbo diesel engine, the 12,000-liter (approx. 3,170-gallon) cylindrical carbon steel tank is engineered to withstand extreme negative vacuum pressures without structural distortion. A heavy-duty PTO-driven vacuum pump delivers deep lift capability to extract viscous municipal sludge, grease trap waste, and chemical sediment from subterranean retention ponds and pumping stations.
Technical Specifications
- Brand Name
- ISUZU
- Overall Dimensions (mm)
- 9675×2520×3850
- Box Volume (m3)
- 12
- Box Body Material Quality
- Q235 carbon steel
- Box Thickness (mm)
- 8
- Sewage pump pressure（MPA）
- -8
- Drive form
- 4*2
- Max engine power(Kw)
- 151
- Unloading method
- Self-unloading
Powerful Suction and Drainage
Standard Components Details
Multifunctional Optional Fittings

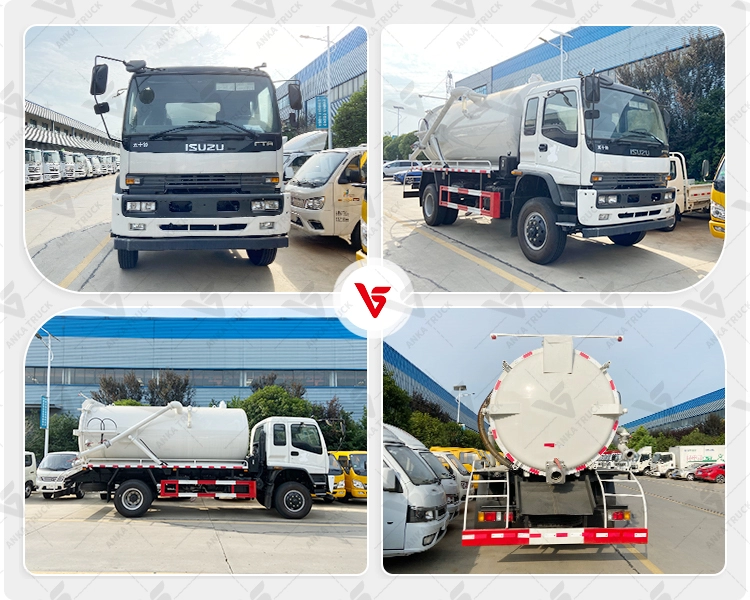

Factory Display

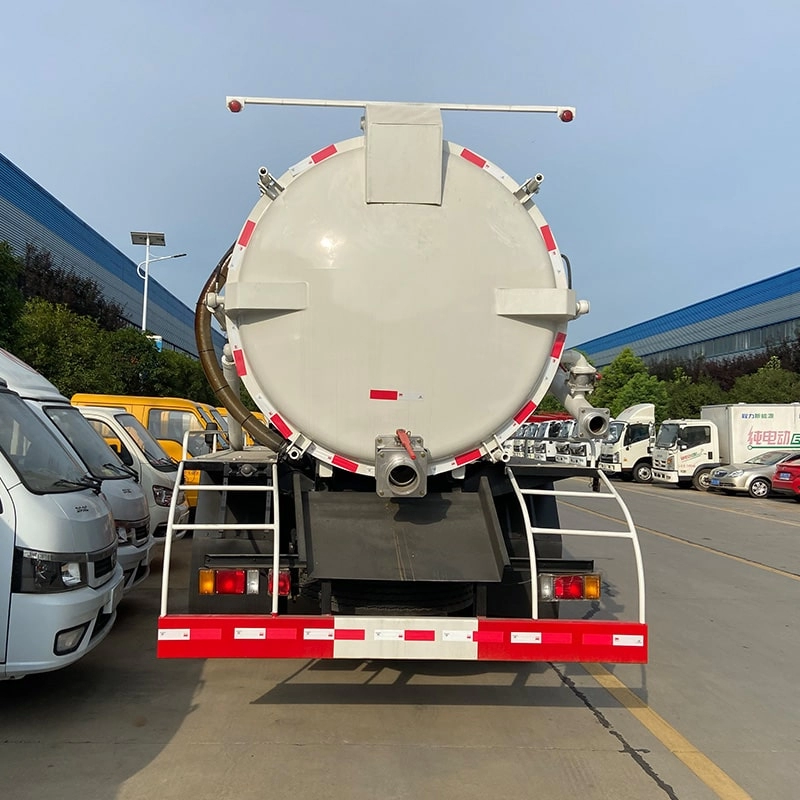

To eliminate manual clean-out of heavy compacted sludge, this vacuum tanker features a full-opening hydraulic clamshell rear tailgate and dual front telescopic hydraulic tipping cylinders that elevate the tank to a steep 45-degree dumping angle. The system is protected by dual safety overflow cut-off valves, an oil-gas separator, and a sight-glass level indicator for safe monitoring during loading cycles. We provide tailored engineering options such as 304/316L stainless steel or epoxy-lined tank shells for corrosive industrial effluents, hydraulic rear hose guide booms, auxiliary pressure-washdown pumps, and custom chassis wheelbase adaptations. Contact our export engineering team to configure this 12,000L vacuum platform for your regional treatment contracts.
Packing and Delivery
*Packing--Waxed or nude, and covered with tarpaulin.
*shlpping--small type can be shipped in 20"GP40"GPor 40"H0, big type can be shipped in bulk ship or RoROshipping,or according to your requirement.
