ISUZU GIGA 20CBM Compactor for Transfer Stations
-
When You'll Get It:Jan 13 - Jan 17
-
Shipping & Support: In-stock items ship in 24 hours; custom orders ship per contract.
ISUZU GIGA 20CBM Compactor for Transfer Stations
Engineered for metropolitan solid waste transit authorities, regional refuse transfer stations, and long-haul landfill disposal contractors, the ISUZU GIGA 20CBM Heavy-Duty Compactor Garbage Truck maximizes payload per trip over extended highway distances. Built on the rugged ISUZU GIGA 6x4 heavy commercial platform (approx. 25,000–33,000 kg GVW) powered by the high-output 380–420 HP 6UZ1/6WG1 turbocharged diesel engine, this flagship hauler features a massive 20m³ reinforced curved body built from 5mm high-tensile NM450 wear-resistant steel plate. Its extreme bi-directional hydraulic compaction system generates up to 20 MPa pressure to achieve an aggressive 1:3 compression ratio, allowing operators to haul 12–15 metric tons of solid municipal refuse per trip and eliminate over 50% of round-trip transfer runs.
Technical Specifications
- Brand Name
- ISUZU
- Overall Dimensions (mm)
- 10280*2550*3500
- curb weight(Kg)
- 9800
- Loading capacity(Kg)
- 14975
- Box Volume (m3)
- 20
- Box Body Material Quality
- Q345 steel
- Engine Power（kw）
- 280
- Fuel type
- Diesel fuel
- Front Axle/Rear Axle (t)
- 7.5/10+10
- Gearbox Model
- ZF8HP70L
- Number of Axles
- 6
- Wheelbase (mm)
- 10000
Standard Components Details
Rear Loader Option

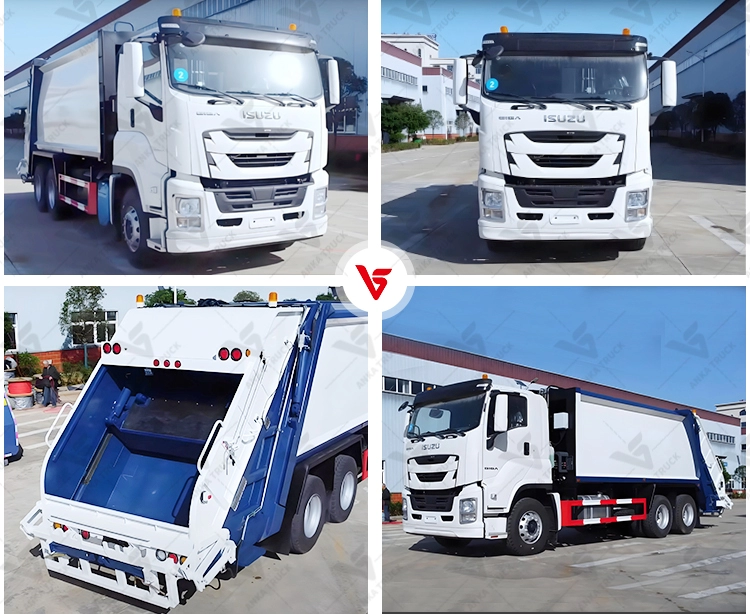

Factory Display
To guarantee clean and rapid depot turnaround, the compactor features double-acting hydraulic tailgate locking cylinders with heavy silicone gaskets and a full-width internal dozer blade that ejects the compressed load cleanly in under 40 seconds. Sub-floor stainless steel drainage channels divert compressed leachate into dual anti-corrosion reservoirs totaling over 1,000 liters, fitted with pneumatic discharge gates to prevent highway dripping. Controlled via an in-cab CAN-bus color display, rear dual-side manual consoles, and radio remote, the vehicle is fully customizable with 1.8–2.2m³ wide-mouth hopper tippers, swing-arm skip hoists, automated fire suppression, and GPS telemetry modules.
Packing and Delivery
*Packing--Waxed or nude, and covered with tarpaulin.
*shlpping--small type can be shipped in 20"GP40"GPor 40"H0, big type can be shipped in bulk ship or RoROshipping,or according to your requirement.
