ISUZU GIGA 13CBM Compactor for Municipal Fleets
-
When You'll Get It:Jan 13 - Jan 17
-
Shipping & Support: In-stock items ship in 24 hours; custom orders ship per contract.
ISUZU GIGA 13CBM Compactor for Municipal Fleets
Engineered for municipal sanitation departments, urban avenue collection crews, and mid-size city waste authorities, the ISUZU GIGA 13CBM Compactor Garbage Truck combines heavy-duty chassis durability with optimized urban maneuverability. Built on the rugged ISUZU GIGA 4x2 commercial platform (approx. 16,000–18,000 kg GVW) powered by the dependable 205–240 HP turbocharged common-rail diesel engine, this workhorse features a 13m³ seamless arc body formed from 4mm Q345/NM450 anti-corrosion steel plate. Its bi-directional hydraulic compaction system crushes mixed municipal waste with a rapid 22-second cycle time and a 1:2.5 compression ratio, securing up to 7–8 metric tons of compressed payload per run to clear standard urban avenue routes in fewer collection cycles without clogging traffic lanes.
Technical Specifications
- Brand Name
- ISUZU
- Overall Dimensions (mm)
- 9180*2550*3400
- curb weight(Kg)
- 7100
- Loading capacity(Kg)
- 8675
- Box Volume (m3)
- 13
- Box Body Material Quality
- Q345 steel
- Engine Power（kw）
- 151
- Fuel type
- Diesel fuel
- Front Axle/Rear Axle (t)
- 6.3/13
- Gearbox Model
- Isuzu MLD-6Q
- Number of Axles
- 4
- Wheelbase (mm)
- 5190
Standard Components Details
Rear Loader Option

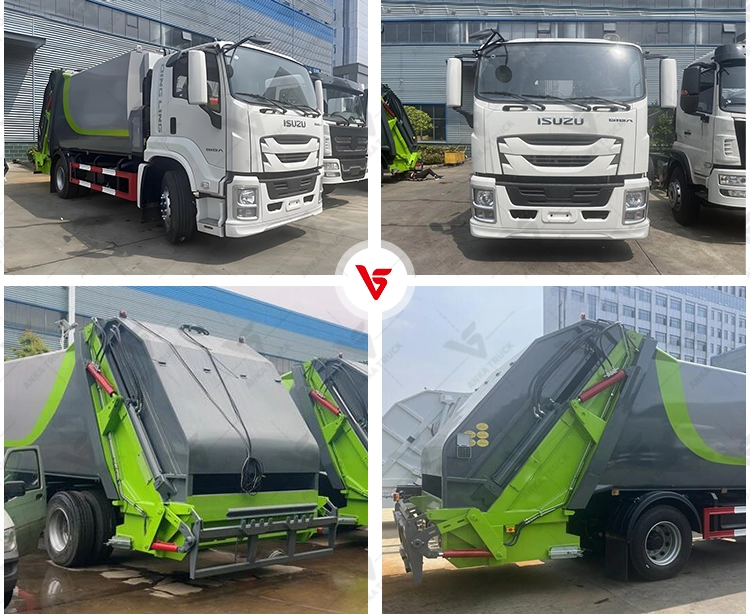

Factory Display
To facilitate swift and hygienic roadside refuse collection, the compactor is equipped with a smooth rear hydraulic cart lifter that handles 120L, 240L, and 660L residential containers with automatic top-edge locking. Dual acid-resistant underfloor leachate collection tanks with quick-release manual gate valves fully capture compressed liquid waste, guaranteeing zero leakage during street transit. Operations are managed via an in-cab CAN-bus electronic panel and bilateral rear mechanical lever boxes with multi-point emergency stops and rearview video monitoring. We provide complete municipal fleet customizations, including custom government livery painting, high-pressure hose cleanout reels, rear skip hoists, and automated container barcode scanners.
Packing and Delivery
*Packing--Waxed or nude, and covered with tarpaulin.
*shlpping--small type can be shipped in 20"GP40"GPor 40"H0, big type can be shipped in bulk ship or RoROshipping,or according to your requirement.
