ISUZU 6 Ton Crane Flatbed Wrecker for Car Fleets
-
When You'll Get It:Jan 13 - Jan 17
-
Shipping & Support: In-stock items ship in 24 hours; custom orders ship per contract.

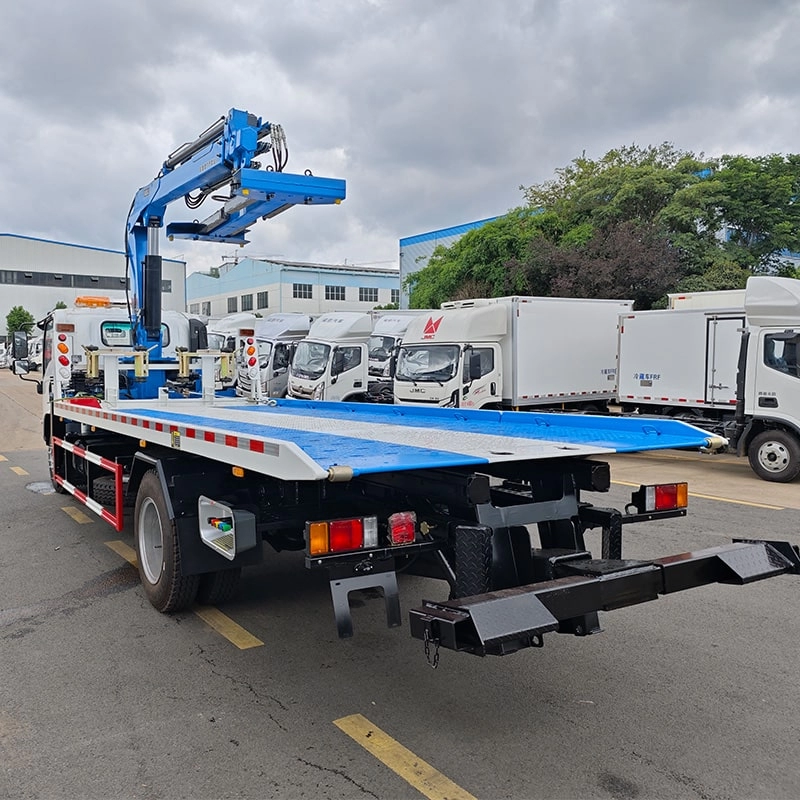

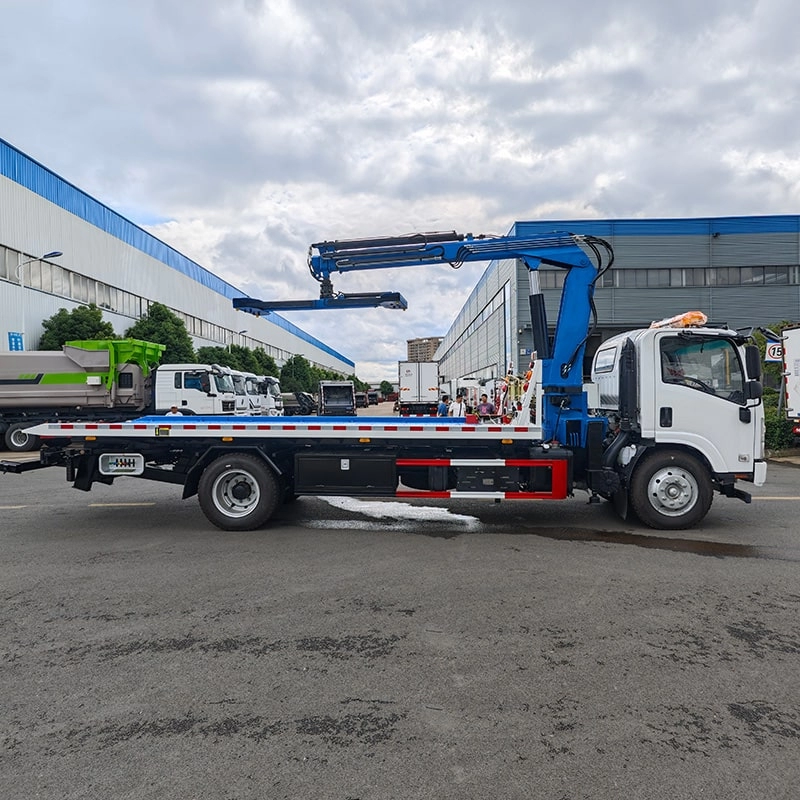

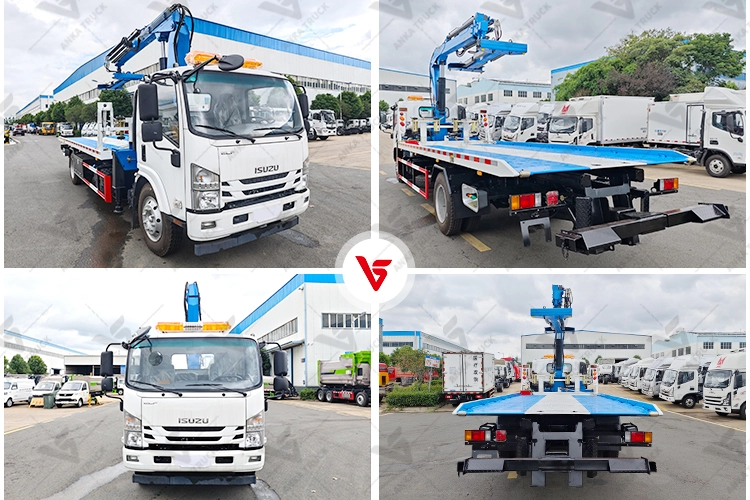

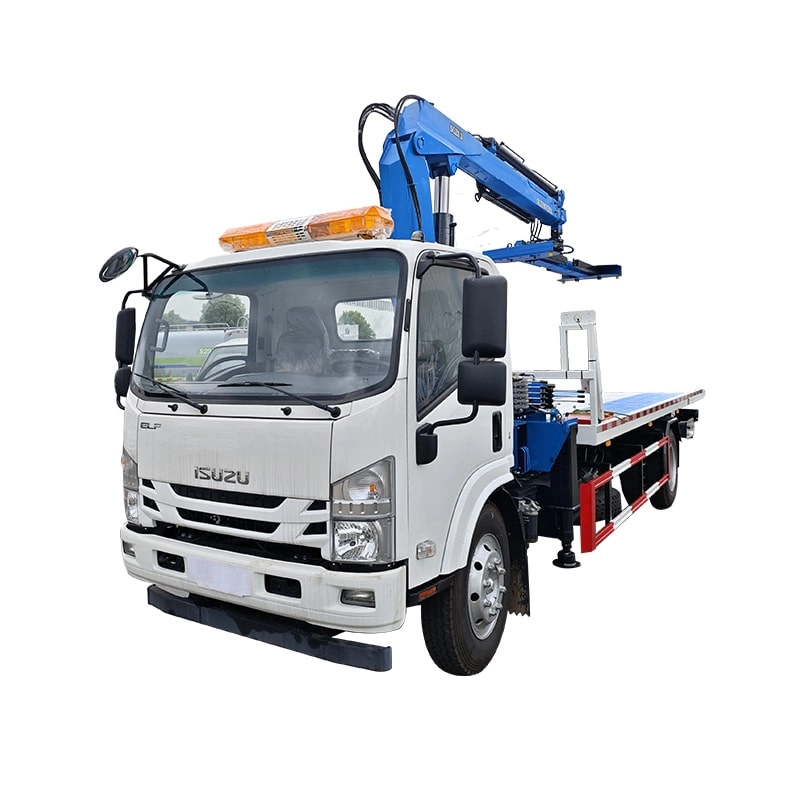

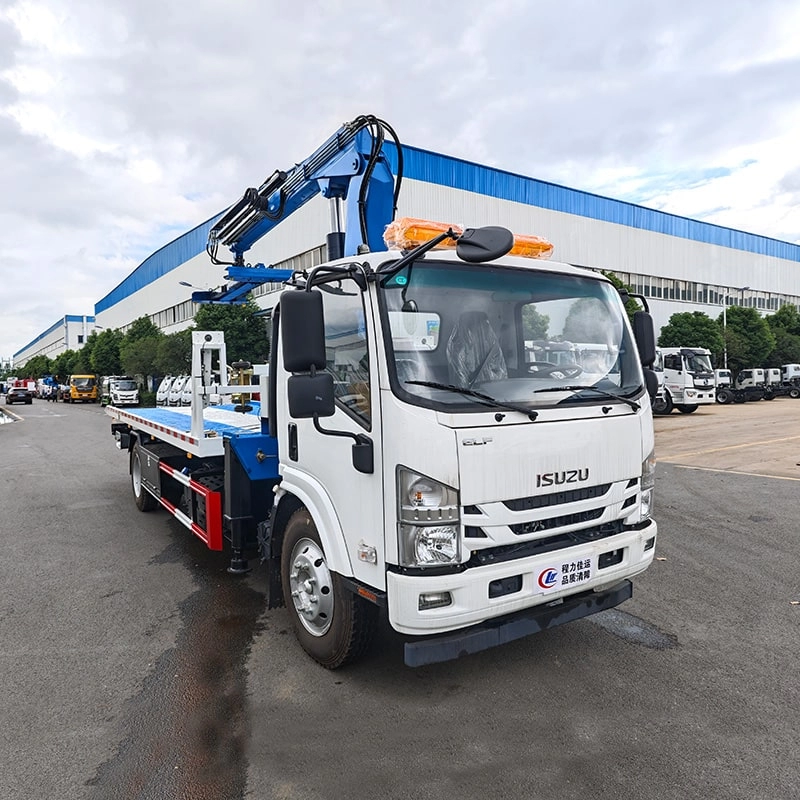

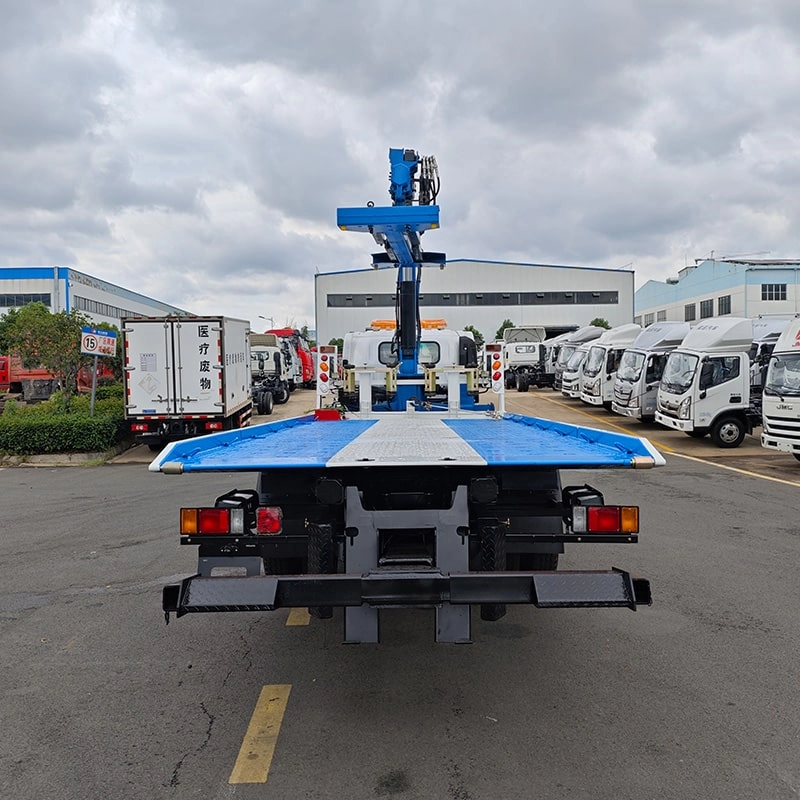

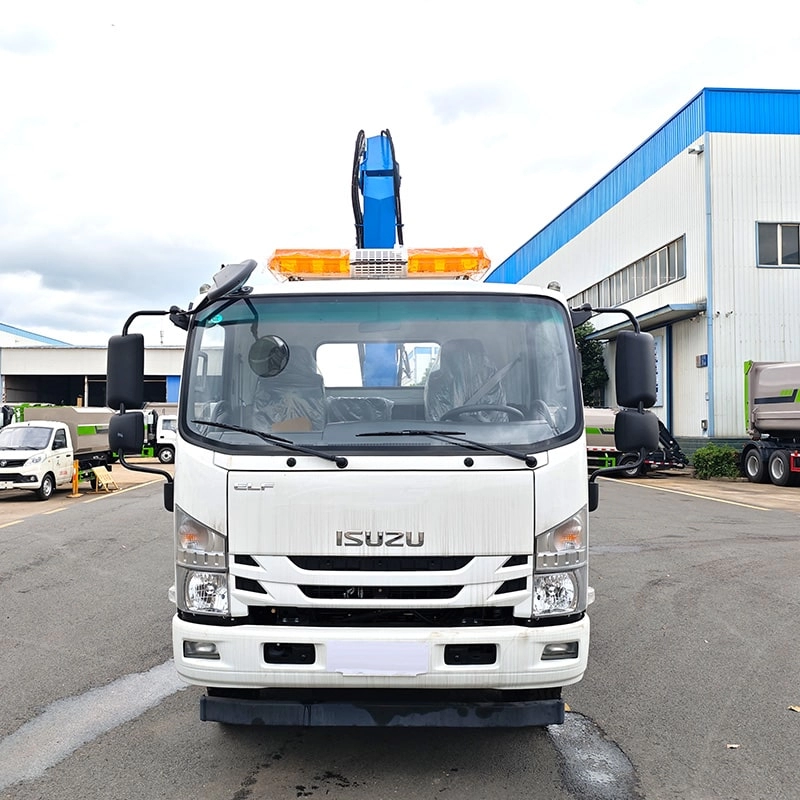

Engineered for auto repair centers, multi-service towing companies, and municipal breakdown responders, the ISUZU 6 Ton Crane Flatbed Wrecker Truck eliminates the need to dispatch separate crane and carrier rigs to complex crash scenes. Built on the durable ISUZU 4x2 light-medium commercial chassis (approx. 8,000–9,500 kg GVW) with an export-grade 190 HP turbocharged diesel engine, this multi-functional recovery vehicle integrates a 5.6-meter hydraulic slide-bed platform, a center-mounted folding knuckle boom crane, and a heavy rear wheel-lift into a single high-efficiency platform capable of transporting two casualty cars simultaneously.
Highlights at a glance
- 2–4 Ton Knuckle Boom Crane**: Center-mounted folding crane delivers a 360-degree working radius with dual hydraulic extending boom sections, effortlessly hoisting rolled-over or submerged cars out of roadside ditches and over concrete guardrails. - 5–6 Ton Tilting Slide-Back Deck**: Formed with high-strength anti-slip stamping or checkered steel plate (approx. 5,600 × 2,300 mm), providing a low loading angle and a robust hydraulic tilt cylinder setup for secure vehicle drive-on or winch loading. - 2-Car Simultaneous Transport Capability**: Combines the primary slide deck with a heavy-duty hydraulic rear wheel-lift under-reach bracket (2.5-ton lift rating), allowing operators to carry one vehicle on the bed while towing another behind. - 4–5 Ton Planetary Hydraulic Winch**: Front-mounted hydraulic cable winch equipped with a tensioner and 25-meter steel cable, enabling controlled single-line pulling of immobilized casualty vehicles up the tilted ramp.
Technical Specifications
- Curb Weight(Kg)
- 11000
- Boundary Dimension(mm)
- 9000×2450×3900
- Plate Bearing Weight（t）
- 6
- Winch Pull（t）
- 6
- Total Length of Wire Rope（m）
- 20
- Number of Passengers in the Cab(People)
- 3
- Maximum Speed（km/h）
- 105
- Trade Name
- ISUZU
- Type of fuel
- Diesel Oil
- Engine Power（KW）
- 141
- Front Axle/Rear Axle（t）
- 3.5/7.05
- Gearbox
- 6Speed Manual Transmission
- Number of Axes
- 2
- Wheelbase (mm)
- 4475
- Number of Tires
- 6
Standard Components Details
Flatbed Wrecker Type Options
Flatbed Wrecker Type Options
Factory Display
For seamless operations in tight city streets and highway shoulders, the wrecker features dual-side hydraulic lever control stations paired with an optional wireless remote control for single-person deck and winch operation. Auxiliary hydraulic outrigger legs deploy beneath the crane base to deliver solid lateral anti-tilt stabilization during heavy crane swings. We offer full fleet customizations, including full-width rooftop LED warning beacon bars with traffic arrows, aluminum tool storage cabinets, auxiliary tire dolly sets for locked wheels, stainless steel lashing D-rings, and heavy motorcycle transport cradles. Contact our engineering team to customize your multi-role recovery fleet.
Packing and Delivery
*Packing--Waxed or nude, and covered with tarpaulin.
*shlpping--small type can be shipped in 20"GP40"GPor 40"H0, big type can be shipped in bulk ship or RoROshipping,or according to your requirement.
