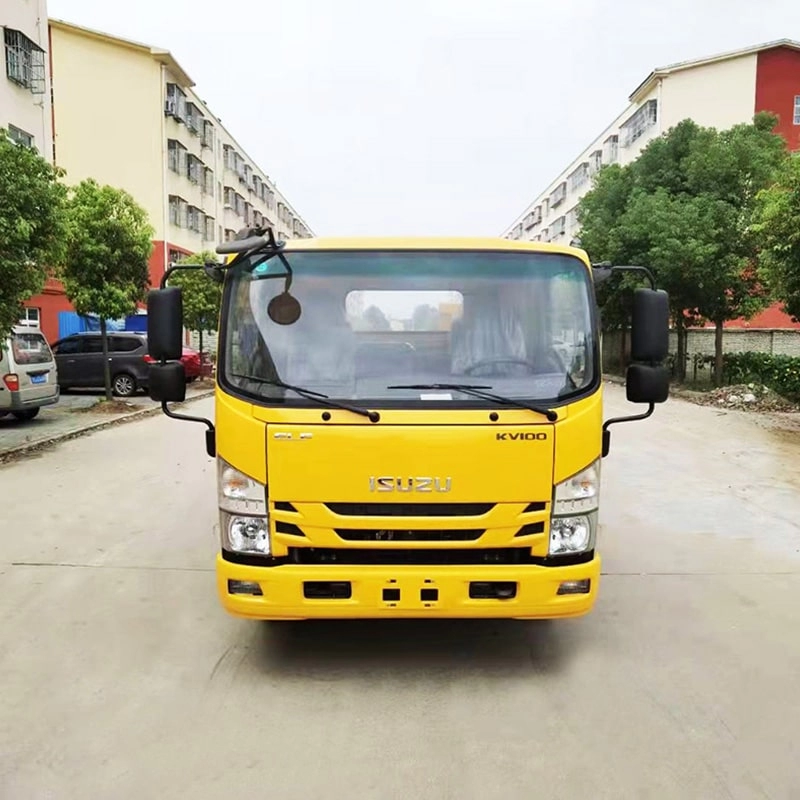

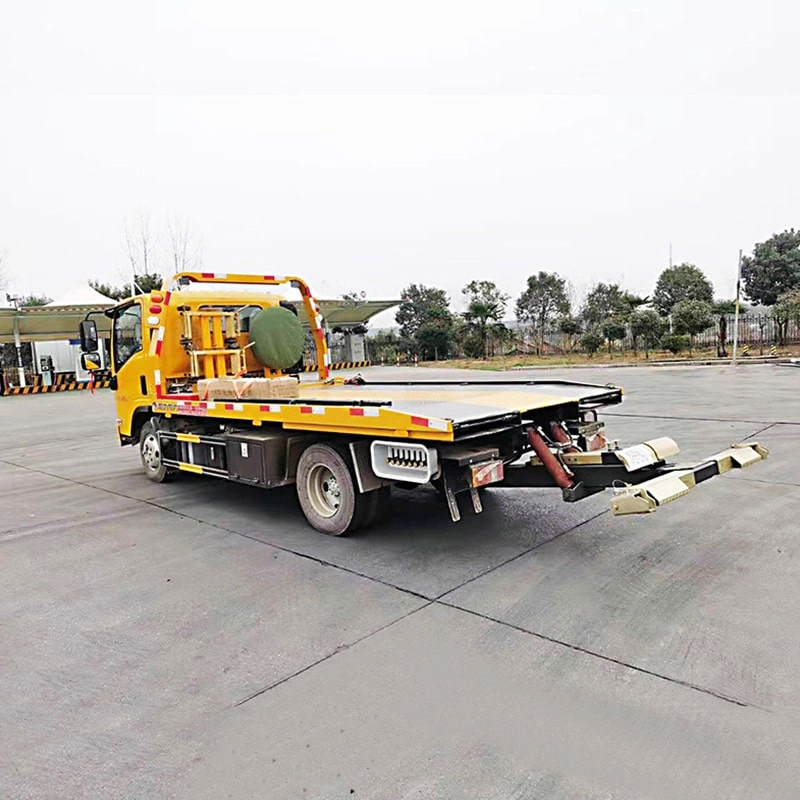

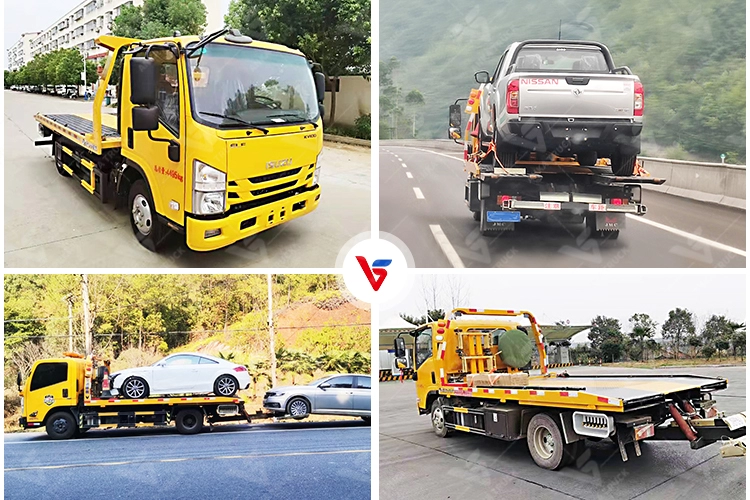

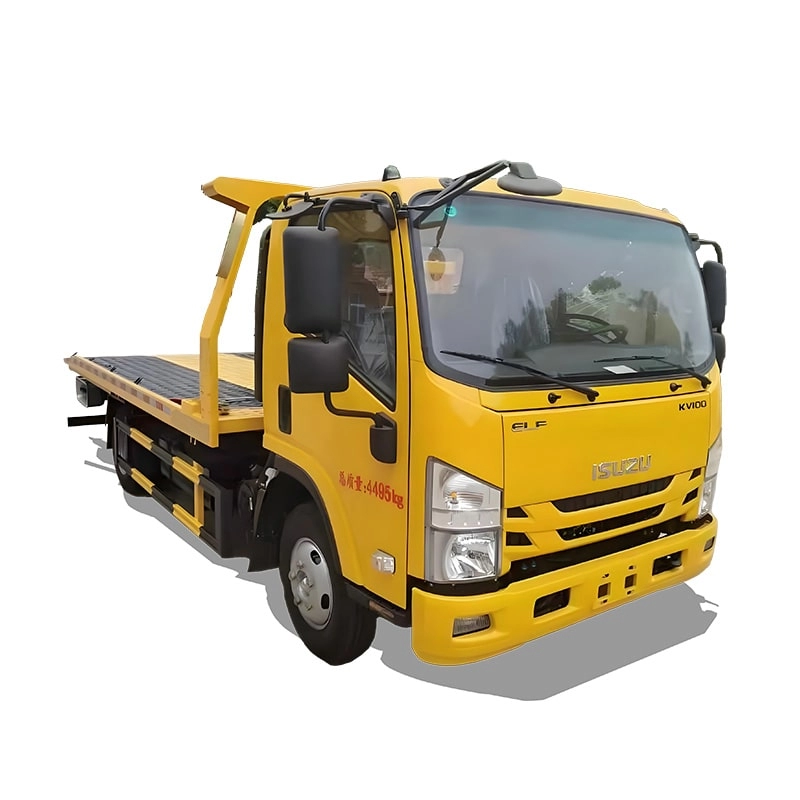

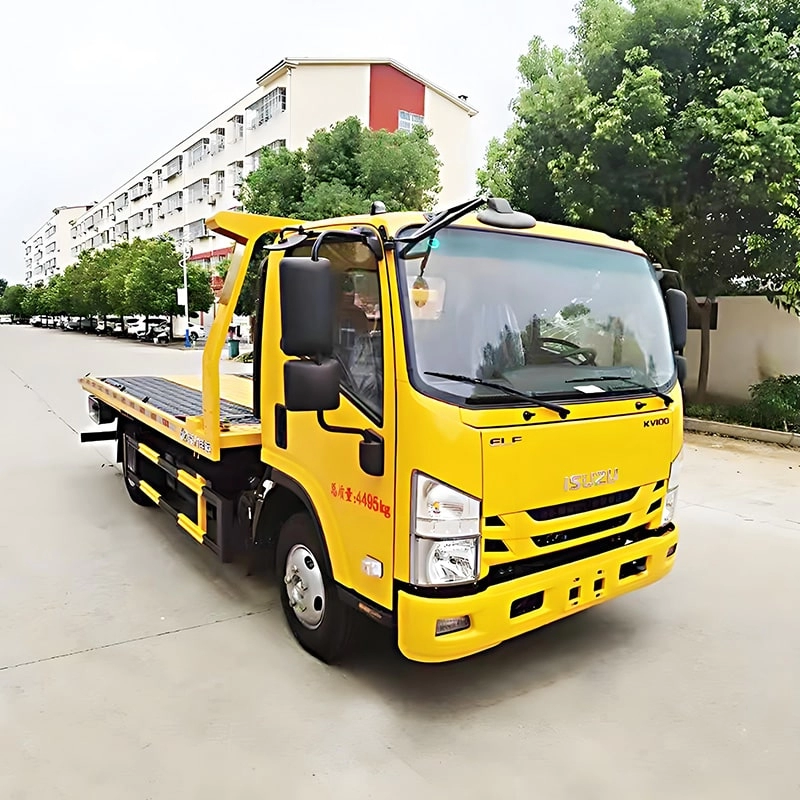

ISUZU 3 Ton Small Wrecker for Garage Rescue
-
When You'll Get It:Jan 13 - Jan 17
-
Shipping & Support: In-stock items ship in 24 hours; custom orders ship per contract.
Engineered specifically for property management companies, underground parking operators, and urban emergency responders facing strict height limits, the ISUZU 3 Ton Small Flatbed Wrecker Truck maneuvers where standard tow trucks cannot enter. Built on the ultra-compact ISUZU 100P/ELF light commercial chassis (approx. 4,500–5,500 kg GVW) with an overall vehicle height engineered below 2.2 meters, this low-clearance recovery carrier effortlessly navigates basement parking structures, multi-level garages, and narrow historical city streets to rescue dead-battery or immobilized passenger cars.
Highlights at a glance
- Ultra-Low Clearance Cab Profile (< 2.2m Overall Height): Low-slung chassis packaging and flat-mounted low-profile LED warning beacons allow the truck to enter multi-level commercial basement garages without overhead collision risks. - Compact 4.2-Meter Slide-Back Deck: Lightweight high-strength checkered steel platform (approx. 4,200 × 2,050 mm) features a shallow tilt angle, optimized for loading compact cars, sedans, and small hatchbacks in restricted turning bays. - 1.5-Ton Low-Profile Rear Wheel-Lift: Foldable under-reach towing boom can slip under low passenger vehicle bumpers within tight underground parking spaces without requiring full deck extension. - 3-Ton High-Torque Hydraulic Winch: Compact hydraulic winch with 20-meter cable delivers ample pulling power to drag non-running vehicles out of steep garage spiral exit ramps.
Technical Specifications
- Curb Weight(Kg)
- 4200
- Boundary Dimension(mm)
- 5995×2300×2350
- Plate Bearing Weight（t）
- 3
- Winch Pull（t）
- 4
- Total Length of Wire Rope（m）
- 20
- Number of Passengers in the Cab(People)
- 3
- Maximum Speed（km/h）
- 110
- Trade Name
- Isuzu
- Type of fuel
- Diesel Oil
- Engine Power（KW）
- Isuzu 88
- Front Axle/Rear Axle（t）
- 2/3.5
- Gearbox
- 5 Speed Manual Transmission
- Number of Axes
- 2
- Wheelbase (mm)
- 3360
- Number of Tires
- 6
Standard Components Details
Flatbed Wrecker Type Options
Flatbed Wrecker Type Options
Factory Display
To facilitate stress-free operation in confined garage bays, the wrecker is fitted with proportional hydraulic control valves and a wireless remote controller with variable speed jog functions. Rear-view infrared cameras and obstacle proximity sensors ensure safe reversing in dark basement corners. We offer tailored outfitting for underground fleets, including low-profile aluminum tool cabinets, jump-start booster battery power packs with heavy Anderson plugs, tire inflator hose reels, and multi-angle wheel chock kits. Contact our engineering specialists for low-clearance wrecker customizations.
Packing and Delivery
*Packing--Waxed or nude, and covered with tarpaulin.
*shlpping--small type can be shipped in 20"GP40"GPor 40"H0, big type can be shipped in bulk ship or RoROshipping,or according to your requirement.
