ISUZU KV600 5000L سيارة إطفاء مياه رغوية
-
When You'll Get It:Jan 13 - Jan 17
-
Shipping & Support: In-stock items ship in 24 hours; custom orders ship per contract.
ISUZU 5000L Water Fire Truck for City Stations
Built as a frontline first-attack appliance for municipal fire departments, township emergency stations, and urban commercial zone protection brigades, the ISUZU 5000L Water Fire Truck combines agile urban response with dependable firefighting output. Mounted on the dependable ISUZU 700P/KV600 4x2 commercial chassis (approx. 9,500–11,500 kg GVW) powered by the fuel-efficient 140–190 HP 4HK1/4JJ1 turbocharged common-rail diesel engine, this carrier integrates a 5,000-liter anti-slosh water tank (or 4,000L water + 1,000L foam configuration) constructed from 4mm premium carbon steel with rust-resistant epoxy interior coating. Driven via a full-power sandwich PTO, its rear-mounted CB10/30 fire pump delivers 30 L/s at 1.0 MPa, powering a roof-mounted PS30 fire monitor with a 50-meter throwing range to extinguish structural, residential, and commercial fires rapidly.
Technical Specifications
OUTPUT
- Brand Name
- ISUZU KV600 Fire truck
- Total tank volume（L）
- 5000L
- Truck Dimensions
- 6280×2270×2900
- Gross Truck Mass（kg）
- 6800
- Number of passengers（number）
- 3+3
- Fuel Type
- diesel fuel
- Wheelbase (mm)
- 3815
- Truck drive type
- 4x2
- Engine power (kw)
- 96
Standard Components Details
Multifunctional Optional Fittings

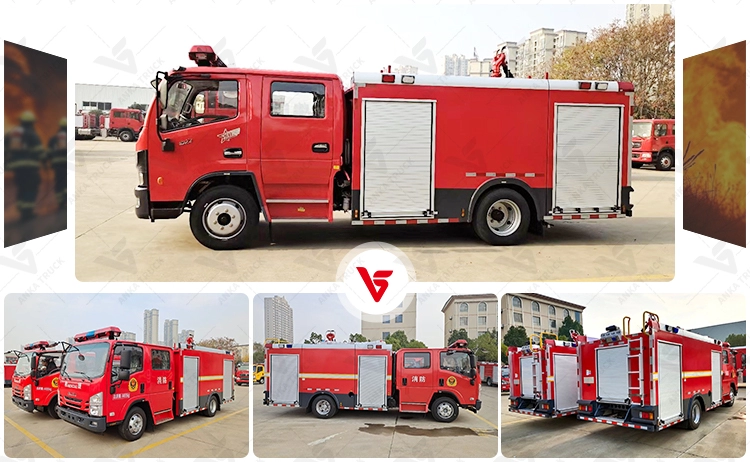

Factory Display
To protect firefighting personnel during high-stress municipal operations, the vehicle features an integrated double-row crew cabin accommodating 2+4 firefighters equipped with SCBA bracket seating. Multi-compartment anodized aluminum lockers with roller shutters securely store fire hoses, branch pipes, rescue axes, and breathing equipment. Standard equipment includes an electronic siren/PA system, full-perimeter LED emergency warning flashers, and a high-pressure hose reel with a 30m hose and pistol-grip nozzle. We provide customized municipal fleet packages, including electric winches, roof searchlights, color reversing monitors, and standard municipal fire department livery.
Packing and Delivery
*Packing--Waxed or nude, and covered with tarpaulin.
*shipping--small type can be shipped in 20"GP40"GPor 40"H0, big type can be shipped in bulk ship or RoROshipping,or according to your requirement.
