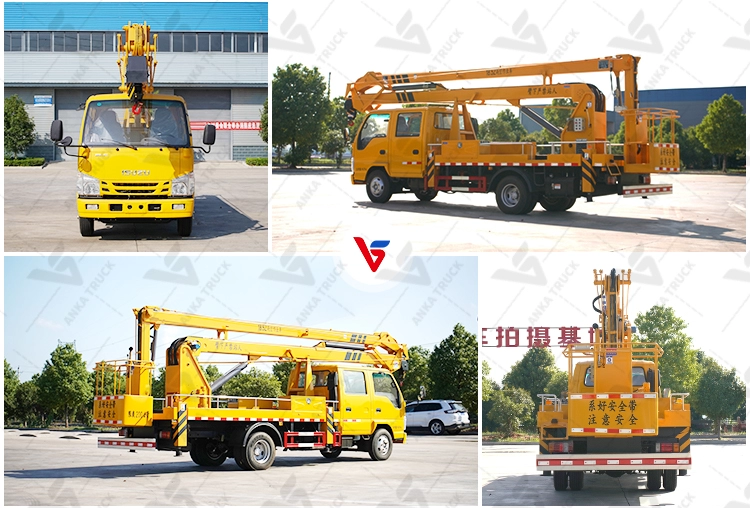

ISUZU 18.5m Bucket Truck for Building Painting
Engineered for building exterior decoration contractors, low-rise residential facade painters, and urban architectural restoration engineering crews, the ISUZU 18.5m Bucket Truck delivers dependable high-altitude access and smooth horizontal maneuvering. Built on the sturdy ISUZU 100P/600P 4x2 commercial chassis (approx. 6,500–7,500 kg GVW) powered by the fuel-efficient 120–130 HP 4KH1 turbocharged common-rail diesel engine, this carrier incorporates a 4-section high-strength alloy steel synchronous telescopic boom with dual luffing cylinders. Driven by an electro-hydraulic proportional multi-way valve system, the spacious folding work basket provides an 18.5-meter maximum working height, 12-meter horizontal outreach, and a 250 kg rated payload (holding 2 painters, paint sprayers, and plaster buckets) with 360° continuous turntable rotation to coat residential facades uniformly.
Technical Specifications
- Overall dimensions(mm)
- 8425*2320*3300
- Maximum Operating Height(m)
- 18.5
- Maximum Operating Radius Amplitude(m)
- 7.5
- Outrigger
- Front V rear H type
- Slewing Gear
- 360 ° Rotation
- Platform Rated Load(kg)
- 200
- Warning Device
- Engineering Strobe Light
- Operating Mode
- Remote/Manual
- Brand Name
- isuzu
- Fuel Type
- Diesel Oil
- Engine Power(KW)
- 88
- Front Axle/Rear Axle(t)
- 3.5/5.5
- Gearbox Model
- 6-Speed Manual
- Wheelbase (mm)
- 3815
- Tire Size
- 7.00R16LT
Standard Components Details
Common Optional Components
Factory Display
To accelerate exterior plastering and high-pressure washing along tight building alleys, the work basket includes an integrated 220V auxiliary power socket and pressurized water/air pass-through lines for airless paint sprayers. Front and rear dual-section H-type hydraulic outriggers feature one-touch automatic leveling and soft-surface support pads to anchor firmly on pedestrian pavements. Micro-motion proportional joysticks allow fine millimeter-level alignment beside window sills. Standard safety apparatus includes an electronic moment monitor, outrigger safety interlocks, and a 12V emergency lowering power unit. We offer specialized exterior coating fleet customizations, including bucket paint bucket mounting trays, high-output LED facade washlights, waterproof cab seat covers, and custom commercial contractor liveries.
Packing and Delivery
*Packing--Waxed or nude, and covered with tarpaulin.
*shipping--small type can be shipped in 20"GP40"GPor 40"H0, big type can be shipped in bulk ship or RoROshipping,or according to your requirement.
