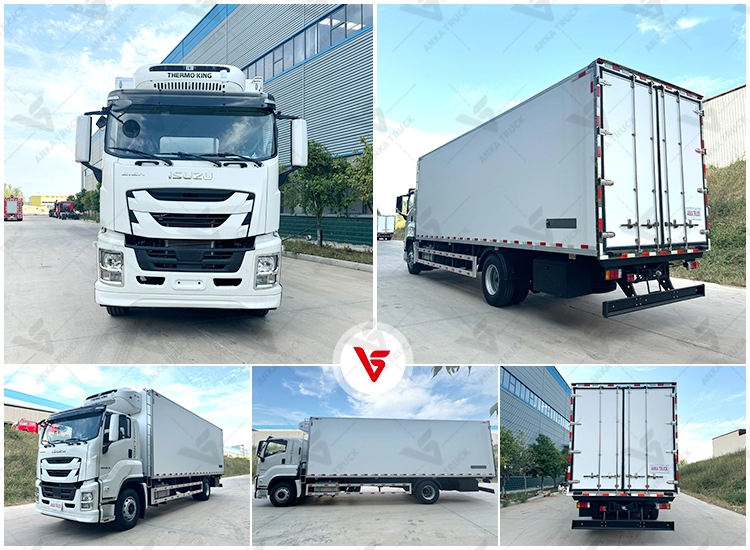

ISUZU GIGA 9.6m Reefer Truck for Long Haul
-
When You'll Get It:Jan 13 - Jan 17
-
Shipping & Support: In-stock items ship in 24 hours; custom orders ship per contract.
ISUZU GIGA 9.6m Reefer Truck for Long Haul

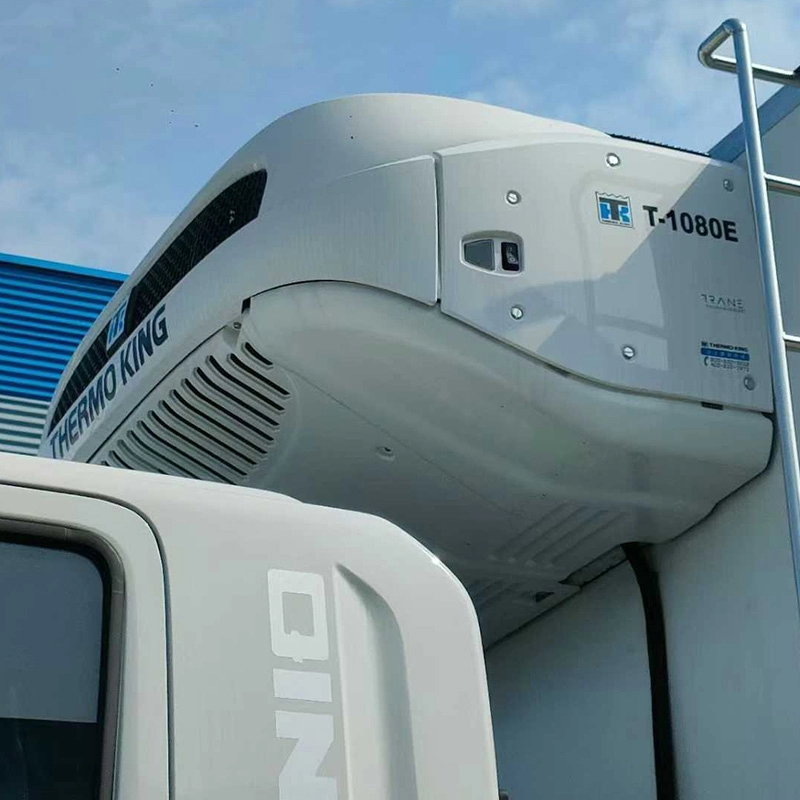

Built for interprovincial trunk lines, cross-border food transport, and high-volume pharmaceutical cold logistics, the ISUZU GIGA 9.6m Reefer Truck stands as the flagship heavy-duty platform for long-haul temperature-controlled transit. Mounted on the robust ISUZU GIGA 8x4 commercial chassis with a 32-ton GVW rating and high-roof sleeper cabin, this carrier boasts a massive 9.6-meter (approx. 55–60 CBM / 2,000 cu.ft) insulated van body capable of accommodating up to 18–20 standard Euro pallets. Powered by the high-torque ISUZU 6UZ1/6WG1 turbo diesel engine and integrated with an independent diesel-powered Thermo King or Carrier multi-temp unit, it delivers unwavering cooling reliability across thousands of highway miles.
Technical Specifications
- Kerb Weight (Kg)
- 7520
- Overall Dimensions(mm)
- 8600*2500*3100
- Box Volume(m³)
- 47
- Box Size（mm）
- 7500*2500*2500
- Refrigerator temperature (°)
- -5°/-18°
- Material of the Insulation Layer of the Box
- Polyurethane Foam
- Insulation Thickness（mm）
- 80
- Trade Name
- 1SUZU
- Type of Fuel
- Diesel
- Front Axle/Rear Axle（t）
- 6.3/13
- Engine Power（kw）
- 176
- Gearbox
- 8-Speed Transmission
- Number of Axles
- 2
- Wheelbase (mm)
- 5700
- Tire Size
- 295/80R22.5 18PR
Standard Components Details
Common Optional Components
Factory Display
To guarantee structural durability over harsh interstate road surfaces, the 9.6-meter box incorporates an extruded high-strength aluminum alloy perimeter subframe, insulated bi-fold side access doors, and an aluminum T-profile air ventilation floor. The heavy-duty tandem drive axles and front twin-steer configuration ensure remarkable directional stability and tire longevity under maximum legal gross vehicle weights. We offer bespoke fleet options including multi-temperature movable partition bulkheads, hydraulic cantilever tail lifts (2.0-ton capacity), recessed cargo e-track tie-down rails, and advanced dual-sensor IoT remote temperature/humidity data loggers. Contact our heavy commercial export engineers to configure this 9.6m GIGA reefer for your long-haul trunk fleet.
Packing and Delivery
*Packing--Waxed or nude, and covered with tarpaulin.
*shlpping--small type can be shipped in 20"GP40"GPor 40"H0, big type can be shipped in bulk ship or RoROshipping,or according to your requirement.
