ISUZU GIGA 16000L Fire Truck for Industrial Parks
-
When You'll Get It:Jan 13 - Jan 17
-
Shipping & Support: In-stock items ship in 24 hours; custom orders ship per contract.

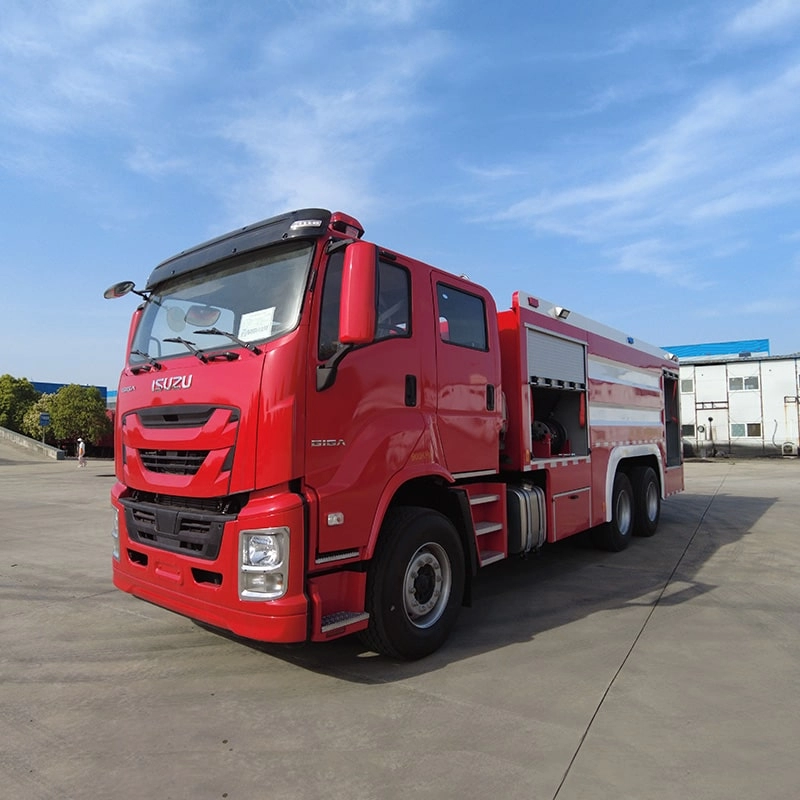

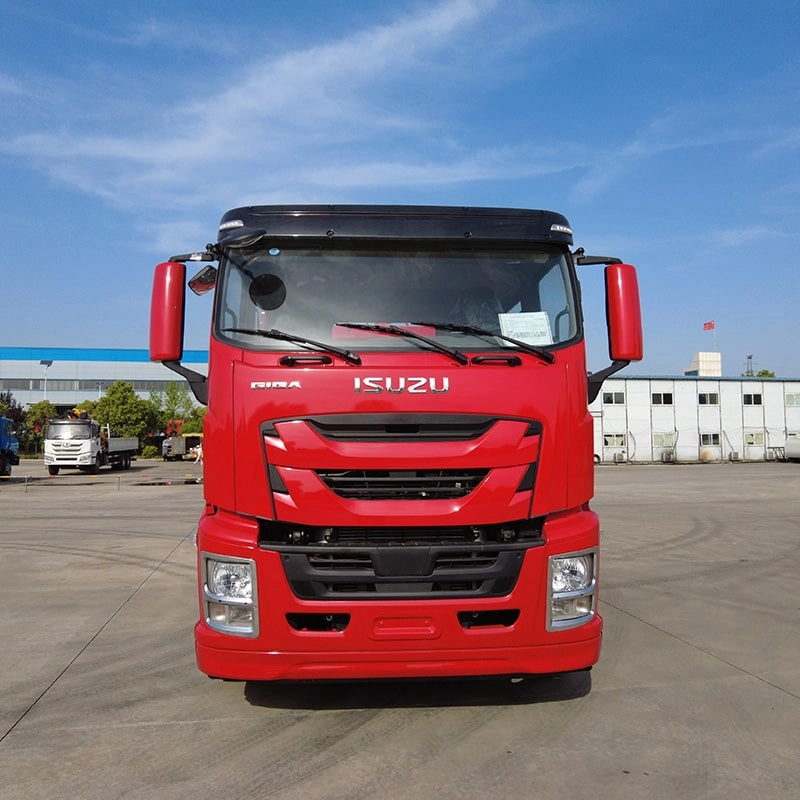

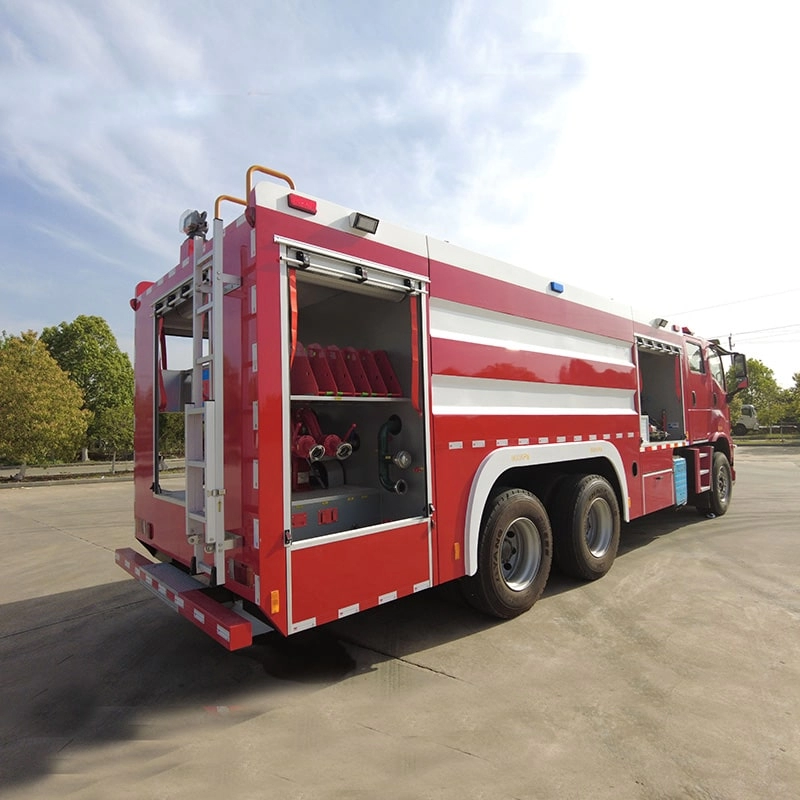

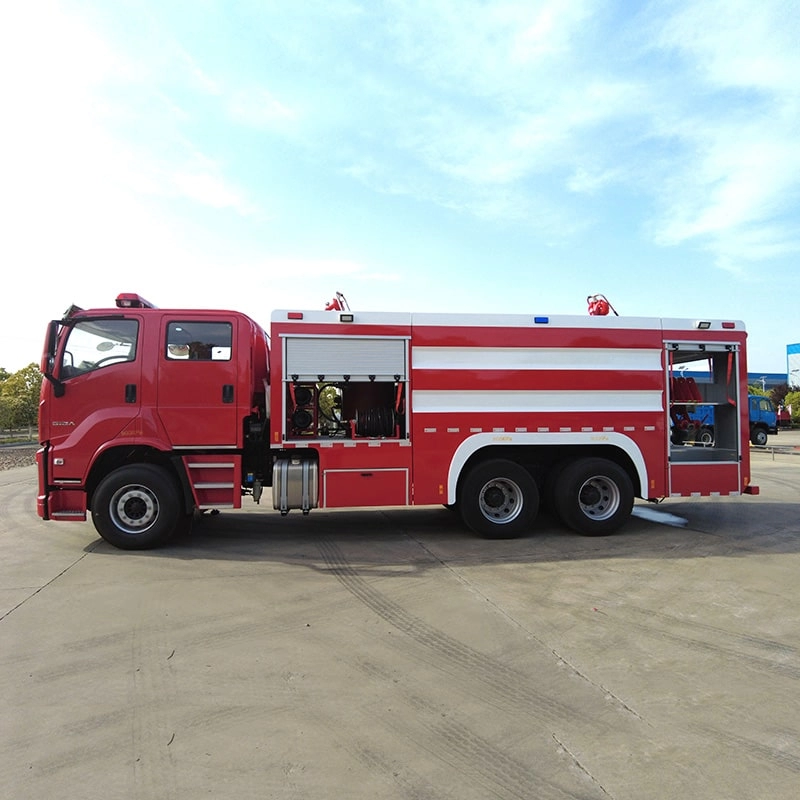

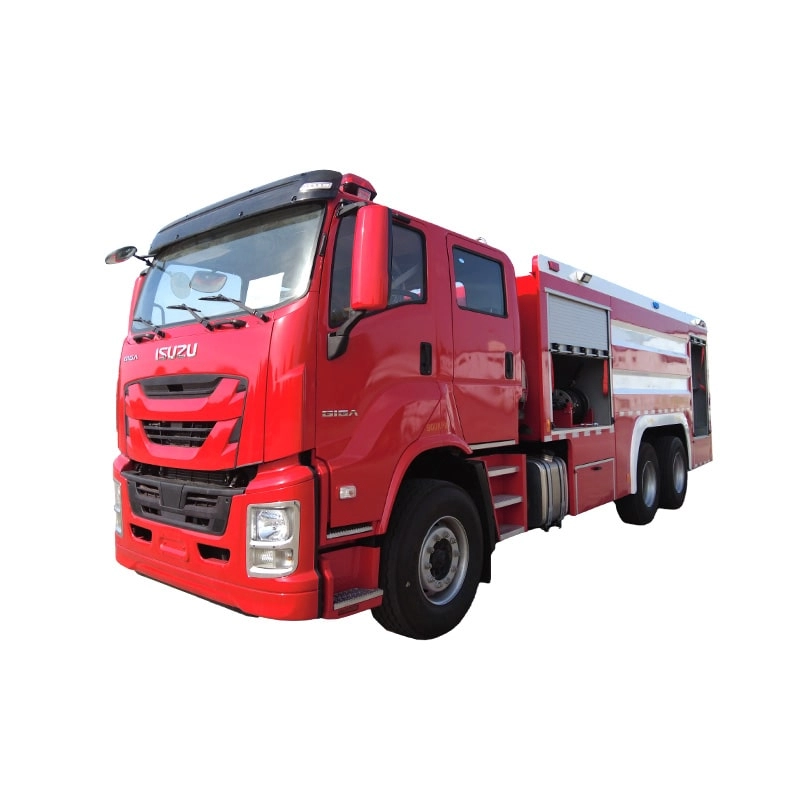

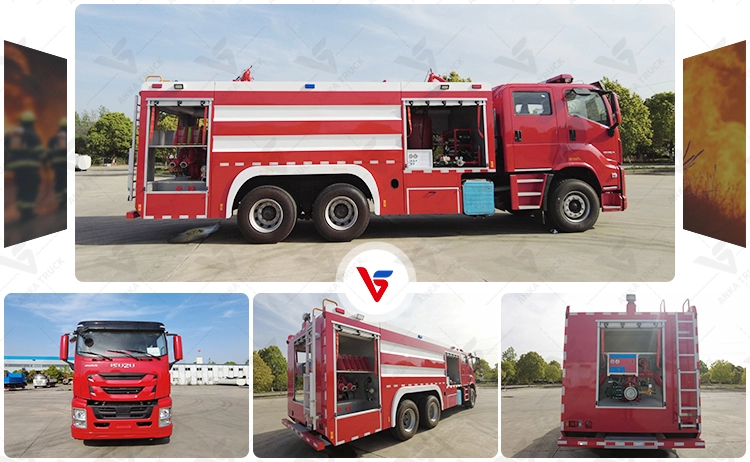

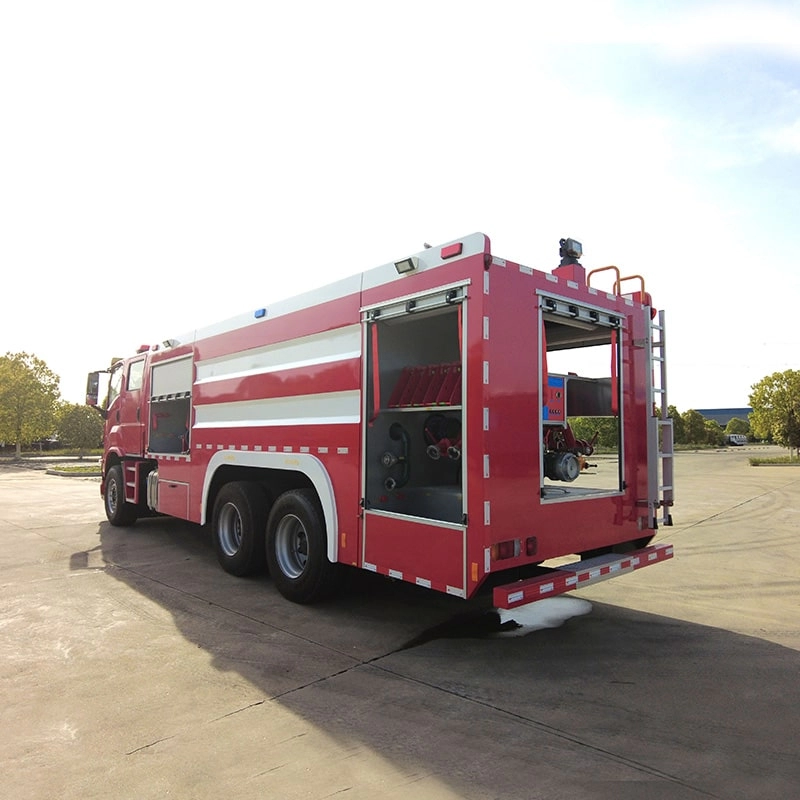

ISUZU GIGA 16000L Fire Truck for Industrial Parks
Engineered for heavy industrial parks, manufacturing gigafactories, and expansive machinery fabrication complexes, the ISUZU GIGA 16000L Fire Truck delivers formidable water suppression and deep foam smothering power. Built on the heavy-duty ISUZU GIGA 6x4 commercial chassis (approx. 25,000–30,000 kg GVW) powered by the muscular 380–420 HP 6WG1/6UZ1 turbocharged intercooled common-rail diesel engine, this emergency vehicle features a 16,000-liter combined tank (12,000L water + 4,000L foam) constructed from 5mm 304 stainless steel or heavy epoxy-coated carbon steel. Powered by a heavy-duty sandwich PTO, its rear-mounted CB10/60 centrifugal fire pump generates 60 L/s flow at 1.0 MPa, feeding a roof-mounted PL48/PL64 electric remote water-foam monitor with a sweeping 65-meter throwing range to suppress large-scale industrial factory blazes effectively.
Technical Specifications
OUTPUT
- Brand Name
- ISUZU GIGA Foam fire truck
- Total tank volume（L）
- 16000L
- Truck Dimensions
- 10345×2540×3530
- Gross Truck Mass（kg）
- 25000
- Number of passengers（number）
- 2+4
- Fuel Type
- diesel fuel
- Wheelbase (mm)
- 5100+1370
- Truck drive type
- 6X4
- Engine power (kw)
- 340
Standard Components Details
Multifunctional Optional Fittings
Factory Display
To ensure rapid response during factory chemical or warehouse blazes, the vehicle incorporates an automatic balanced-pressure foam proportioner (1% to 6% ratio) compatible with AFFF and alcohol-resistant foams. Anodized aluminum lockers with dustproof roller shutters house heavy hydraulic rescue cutters, ventilation blowers, and HazMat containment tools securely. A pneumatic telescopic LED mast light delivers 4x400W brilliant scene illumination with 360° pan-tilt coverage. Operators control pump engagement and monitor articulation via in-cab touchscreens or a 100m wireless industrial remote. We provide comprehensive manufacturing fleet options, including dry powder fire modules, automatic chassis deluge nozzles, thermal imaging monitors, and custom industrial park liveries.
Packing and Delivery
*Packing--Waxed or nude, and covered with tarpaulin.
*shipping--small type can be shipped in 20"GP40"GPor 40"H0, big type can be shipped in bulk ship or RoROshipping,or according to your requirement.
