ISUZU M100 Camión Refrigerado de 5 Toneladas
-
When You'll Get It:Jan 13 - Jan 17
-
Shipping & Support: In-stock items ship in 24 hours; custom orders ship per contract.

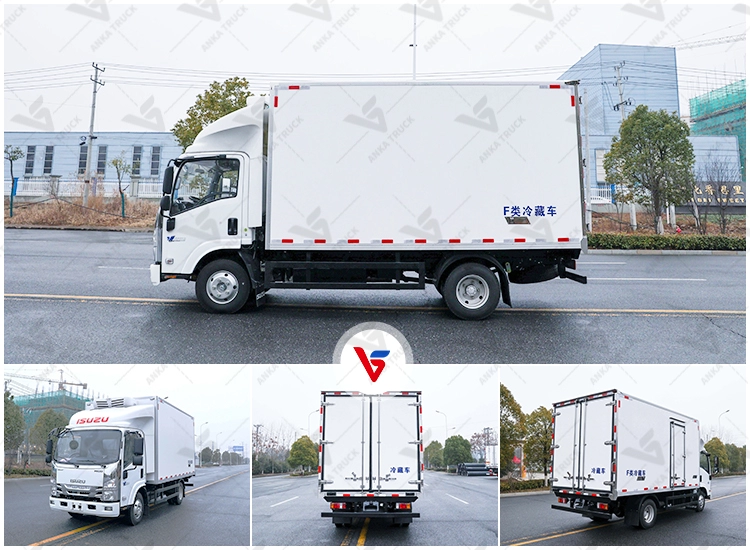

ISUZU M100 5 Ton Freezer Truck for Frozen Fish
Engineered for frozen seafood processors, coastal fishery merchants, and regional cold-storage distribution fleets, the ISUZU M100 5 Ton Freezer Truck ensures constant sub-zero protection for boxed frozen fish, shrimp, and marine cargo. Built on the reinforced ISUZU M100 / ELF wide-cab commercial chassis equipped with an aerodynamic cab roof wind deflector, this 5-ton payload vehicle features a Class F insulated composite body (approx. 16–18 CBM / 565–635 cu.ft). Powered by the high-torque ISUZU turbo diesel engine and a high-performance sub-zero cooling unit, it pulls temperatures rapidly down to -18°C (and down to -25°C), preserving the texture and value of frozen seafood without surface thawing.
Technical Specifications
- Kerb Weight (Kg)
- 3200
- Overall Dimensions(mm)
- 5995×2300×3250
- Box Volume(m³)
- 18
- Box Size（mm）
- 4080×2100×2100
- Refrigeration Temperature Range（℃）
- -5~-18
- Material of the Insulation Layer of the Box
- Polyurethane Foam
- Insulation Thickness（mm）
- 80
- Trade Name
- Isuzu
- Type of Fuel
- Diesel
- Front Axle/Rear Axle（t）
- 2/5
- Engine Power（kw）
- 88
- Gearbox
- 5-Speed Transmission
- Number of Axles
- 2
- Wheelbase (mm)
- 3360
- Tire Size
- 7.00R16
Standard Components Details
Common Optional Components
Factory Display
To withstand corrosive saltwater runoff from melting ice glaze, the cargo compartment is vacuum-bonded with seamless marine-grade FRP wall panels and an anti-slip checkered aluminum floor plate with integrated drain siphons. The truck features wide rear twin doors, a convenient curbside access door with 304 stainless steel hardware, and high-intensity internal LED lighting. We offer targeted seafood options including stainless steel internal wall kick plates, ceiling meat/fish hanging rails, rear hydraulic tail lifts (1.0-ton rating), and wireless IoT temperature loggers. Contact our specialized cold chain engineers to configure this M100 5-ton freezer truck for your fishery logistics operations.
Packing and Delivery
*Packing--Waxed or nude, and covered with tarpaulin.
*shlpping--small type can be shipped in 20"GP40"GPor 40"H0, big type can be shipped in bulk ship or RoROshipping,or according to your requirement.
